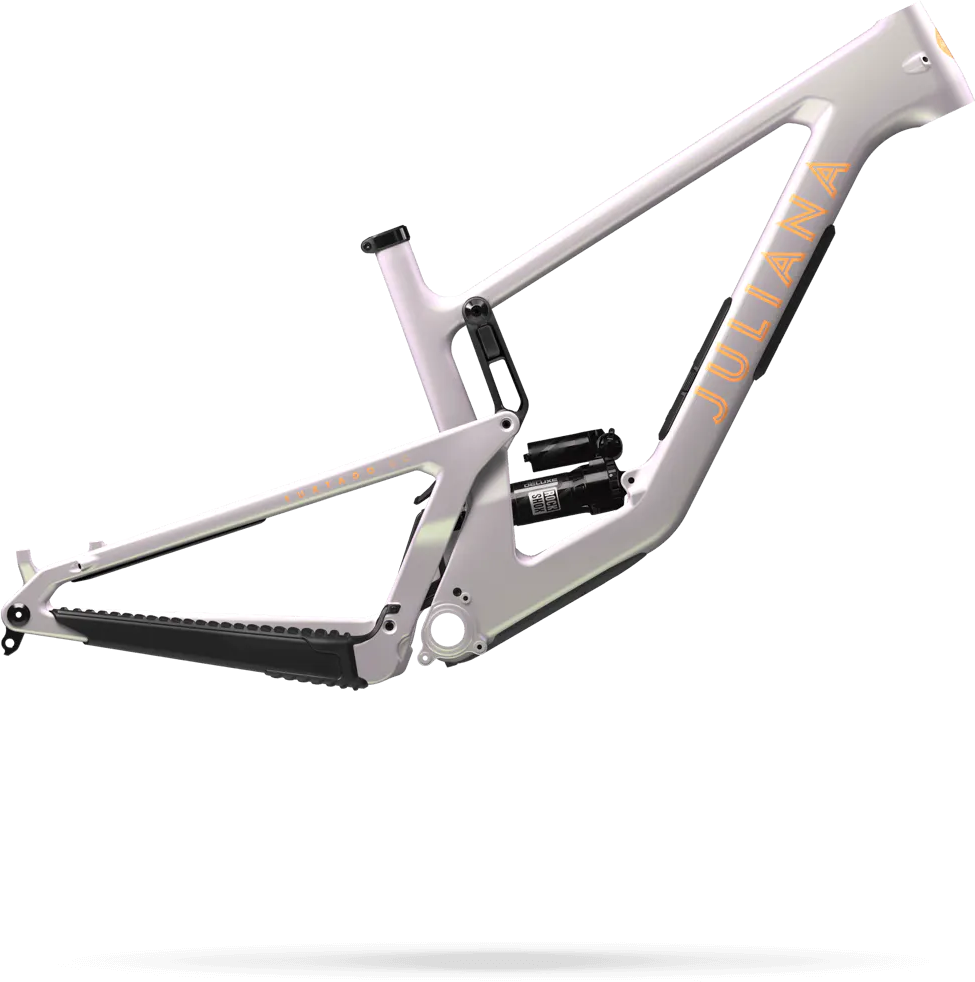

Juliana Furtado CC Frameset

Juliana Furtado CC Frameset
$3,899.00
Color:
Matte Lavender Luster
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

The Furtado’s lively personality will let you level up your riding - whether on your favorite backyard trails or far-flung destinations. With its new mixed wheel setup, the larger front wheel gives you the rollover confidence of a 29er while the smaller 27.5-inch rear wheel keeps you nimble and ensures you’re tracking through corners with ease. Find a fun line, fly over features and turn every trail into a playful pump track with the Furtado.

Geometry Chart:
X-SmallSmallMedium
Reach | hi/lo (mm) 410/406 434/431 459/456
Stack | hi/lo(mm) 599/601 608/610 622/624
Head Tube Angle | hi/lo 65.2/64.9 65.2/64.9 65.2/64.9
Seat Tube Length(mm) 370 380 405
Front Center | hi/lo(mm) 719/718 748/748 779/779
BB Height | hi/lo(mm) 338/335 338/335 338/334
BB Drop (front) | hi/lo(mm) 35/38 35/38 35/38
BB Drop (rear) | hi/lo(mm) 16/19 16/19 16/19
Wheelbase | hi/lo(mm) 1147/1147 1178/1178 1212/1213
Rear Center | hi/lo(mm) 428/429 430/431 433/434
Head Tube Length(mm) 90 100 115
Top Tube Length | hi/lo(mm) 544/544 570/571 598/599
Seat Tube Angle | hi/lo 77.4/77.1 77.4/77.1 77.4/77.1
Standover Height | hi/lo(mm) 694/688 703/698 706/700
Sizes:
X-Small410mm Reach
Small 434mm Reach
Medium 459mm Reach

Part Numbers

Option UPC MPN
Matte Lavender Luster / X-Small 192219348872 68-24287-1-803-2999
Matte Lavender Luster / Small 192219348896 68-24287-2-803-2999
Matte Lavender Luster / Medium 192219348919 68-24287-3-803-2999
