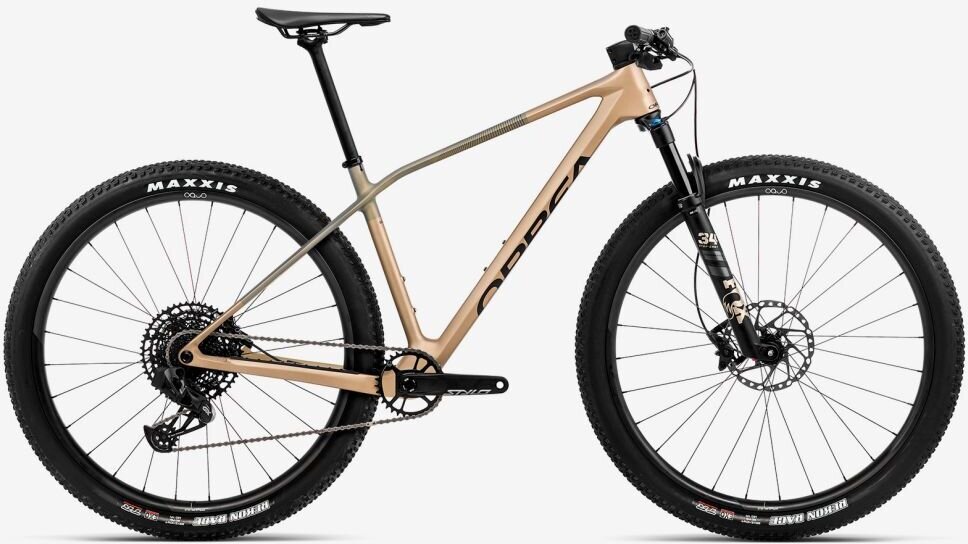

Orbea Alma M21

Orbea Alma M21
  • Color: Baobab Brown/Green Gold (Matt)
  • Color: Halo Silver (Gloss)/Shark Grey (Matt)
  • Color: Powder Black/Black (Matt)
$4,699.00
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

Performance gains can be found everywhere and obsession is part of the game. How far is too far? For as long as we have had goals, competition and a creative spirit, we have pushed ourselves to win. Once victory is tasted, it becomes an obsession to be the best. You feel it in your heart, lungs and legs – you can sense it in our bikes. Only by sweating the smallest details and pushing past what seems possible can we achieve our ultimate goals.

Spirit Fork
A rigid fork isn't for everyone, but it might be perfect for you and that's enough for us – in these cases a carbon fork tuned specifically for your Alma isn't just "nice," it becomes essential. The Spirit fork is compatible with just about any tapered headtube hardtail and is available through the MyO program… so pick any of a dozen colors in hundreds of color combinations to match your trusty rig.

ICR
Internal Cable Routing is carefully guided along the best path with no rub or rattle, and is optimized for both traditional and electronic shifting systems.

Dynamic Structure
The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube and chainstays resist twisting and transmit power to the rear wheel. There is no doubt about it, resistance to flex in the bottom of the frame translates directly to more watts to the wheel and a sensation that power transfer is instantaneous.

OC Cockpit
The Orbea XC Family sports an all-new integrated look with a completely unique OC headset/spacer/stem design. The system includes an optional computer mount that is compatible with all major brands using standard adapters. OC component collaboration is a detail that completes the high-end feel of our modern XC bikes.

Geometry

Sizes:
SIZESMLXL
1 - SEAT TUBE (C-T) 400 445 483 533
2 - TOP TUBE (EFF) 559 593 618 647
3 - HEAD TUBE 90 100 110 125
4 - CHAINSTAY 430 430 430 430
5 - BB HEIGHT 309 309 309 309
6 - BB DROP 61 61 61 61
7 - WHEELBASE 1083 1118 1144 1175
8 - HEAD ANGLE 68 68 68 68
9 - SEAT ANGLE 74.5 74.5 74.5 74.5
10 - STANDOVER 693 729 749 819
11 - REACH 395 426 448 474
12 - STACK 593 602 612 625
13 - FORK LENGTH 500.8 500.8 500.8 500.8
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
155-170 61.1"-66.9" S
165-180 65.0"-70.9" M
178-190 70.1"-74.8" L
185-198 72.8"-78.0" XL

Sizes:
SIZECRANKSTEMHANDLEBAR
S 170 60 740
M 175 75 740
L 175 75 740
XL 175 90 740

Specs

Frame Orbea Alma Carbon OMR, Boost 12x148, PF BB, Internal cable routing.
Fork Fox 34 Float SC Performance 100 FIT4 3POS Remote Push-Unlock QR15x110
Wheels OQUO Mountain Performance MP30TEAM Carbon
Tires Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
Crankset SRAM Stylo 6K Eagle Dub Boost 32t Steel
Shifters SRAM GX Eagle AXS
Rear Derailleur SRAM GX1 Eagle AXS Lunar
Cassette/Freewheel SRAM PG-1230 Eagle 11-50t 12-Speed
Chain SRAM NX Eagle 12-Speed
Brakes Shimano M6100 Hydraulic Disc
Handlebars OC Mountain Performance MP30, Width 760
Stem OC Mountain Performance MP20, -8º
Headset Acros 1-1/8 - 1-1/2" Semi-intergated Block Lock
Seatpost Alloy, forged head, 27.2mm, Setback 0
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Accessories & Extras Remote Lockout: Fox Lockout, 2 Position, Single I-Spec EV
Battery: SRAM Powerpack

* Subject to change without notice.

Part Numbers

Option UPC MPN
Baobab Brown/Green Gold (Matt) / Small 08434446245848 N22316MB
Baobab Brown/Green Gold (Matt) / Medium 08434446245879 N22318MB
Baobab Brown/Green Gold (Matt) / Large 08434446245909 N22319MB
Baobab Brown/Green Gold (Matt) / X-Large 08434446245930 N22321MB
Halo Silver (Gloss)/Shark Grey (Matt) / Small 08434446245855 N22316MD
Halo Silver (Gloss)/Shark Grey (Matt) / Medium 08434446245886 N22318MD
Halo Silver (Gloss)/Shark Grey (Matt) / Large 08434446245916 N22319MD
Halo Silver (Gloss)/Shark Grey (Matt) / X-Large 08434446245947 N22321MD
Powder Black/Black (Matt) / Small 08434446245831 N22316MA
Powder Black/Black (Matt) / Medium 08434446245862 N22318MA
Powder Black/Black (Matt) / Large 08434446245893 N22319MA
Powder Black/Black (Matt) / X-Large 08434446245923 N22321MA
