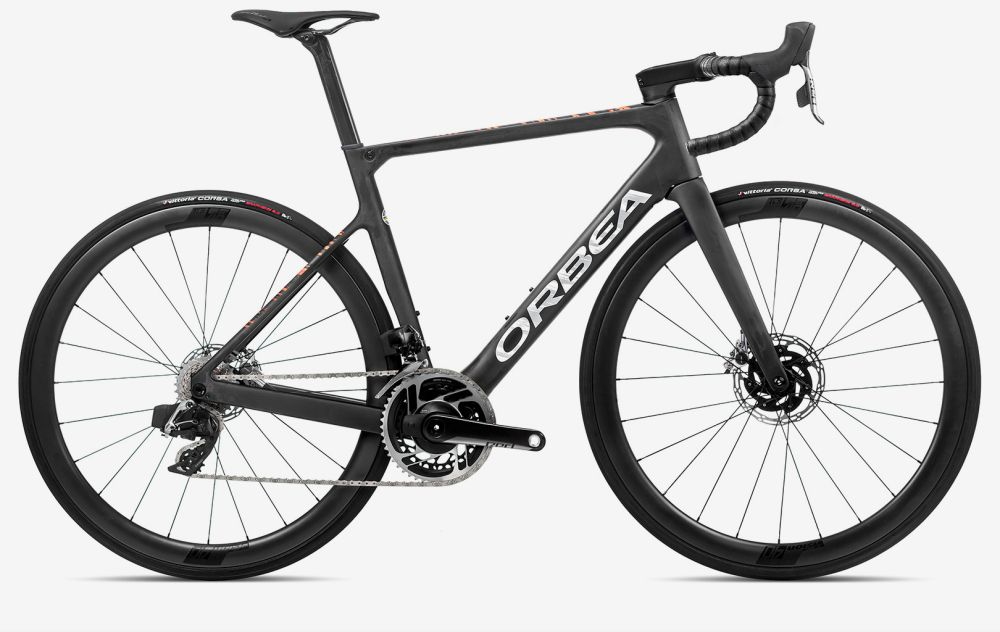

Orbea Orca M11eLTD PWR

Orbea Orca M11eLTD PWR
  • Color: Euskadi
  • Color: Glitter Anthracite/Blue Carbon View (Gloss)
  • Color: Red Wine (Gloss)/Carbon Raw (Matt)
  • Color: White Chic/Black (Gloss)
  • Color: WNT
$11,399.00
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

Performance, technology and style have always been cornerstones of cycling. We may not compete but we love the feel of a racing bike – an Orca that is light, fast and beautiful. Professional athletes, weekend warriors, Strava hunters and recreational riders all have similar aspirations – we love the machine as much as the lifestyle.

Geometry

Sizes:
SIZE (CM)47495153555760
MEASUREMENTS (MM)
1 - SEAT TUBE (C-T) 440 460 480 500 520 540 570
2 - TOP TUBE (EFF) 510 523 536 549 560 576 590
3 - HEAD TUBE 105.6 113.2 129.6 147.9 168 186.2 213.3
4 - CHAINSTAY 408 408 408 408 408 408 408
5 - BB HEIGHT 267 267 267 269 269 269 269
6 - BB DROP 72 72 72 70 70 70 70
7 - WHEELBASE 972 976 980 981 991 1002 1016
8 - HEAD ANGLE 71° 71.5° 72.20º 72.80° 73.00° 73.20° 73.20°
9 - SEAT ANGLE 74.5° 74° 73.7° 73.5° 73.5° 73.2° 73.2°
10 - STANDOVER 728 741 760 780 801 819 847
11 - REACH 370 376 380 385 391 398 404
12 - STACK 506 515 533 552 572 590 616
13 - FORK LENGTH 370 370 370 370 370 370 370
RAKE 48 48 48 43 43 43 43
Sizes:
HEIGHT (CM)HEIGHT (IN)SIZE (CM)
155-160 61.1"-63.0" 47
160-166 63.0"-65.4" 49
167-172 65.7"-67.7" 51
173-179 68.1"-70.5" 53
180-185 70.9"-72.8" 55
186-191 73.2"-75.2" 57
192-207 75.6"-81.5" 60

Sizes:
SIZE (CM)CRANKSTEMHANDLEBAR
47 170 80 380
49 170 90 400
51 170 90 400
53 170 100 420
55 172 100 420
57 172 110 440
60 175 120 440

Specs

Frame Orbea Orca carbon OMX Disc, monocoque construction, HS 1,5", BB 386mm, power meter compatible, Rear Thru-Axle 12x142mm, thread M12x2 P1, internal cable routing, EC/DC compatible, OMX specific seat tube.
Fork Orbea Orca OMX ICR fork 2020, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru-axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Wheels Vision 40 SC Disc Carbon TLR CL
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Corsa Competition G2.0 TLR 700x25c
Crankset SRAM RED 1 AXS Power Meter Dub 35x48T
Shifters SRAM RED eTap AXS
Front Derailleur SRAM Red eTAP
Rear Derailleur SRAM RED eTap
Cassette/Freewheel SRAM XG-1290 10-28T 12-Speed
Chain SRAM RED 12-Speed
Brakes SRAM RED eTap AXS
Handlebars OC Road Performance RP10 Carbon, Reach 80, Drop 125
Tape/Grips Handlebar Plugs: Lyzard DSP 2.5mm
Stem OC Road Performance RP10, -8º
Headset Acros Alloy 1-1/2" Internal Cable Routing, Stainless Steel Bearing
Seatpost Orbea Orca OMX, SB0/25, w/Micro tilt adjustment
Saddle Selle Italia SLR Boost SuperFlow L Carbon Rail Ø7x9 mm
Pedals Sold separately
Accessories & Extras SRAM eTap Powerpack

* Subject to change without notice.

Part Numbers

Option UPC MPN
Euskadi / 47cm 08434446199974 N12347TK
Euskadi / 49cm 08434446200038 N12349TK
Euskadi / 51cm 08434446200090 N12351TK
Euskadi / 53cm 08434446200151 N12353TK
Euskadi / 55cm 08434446200212 N12355TK
Euskadi / 57cm 08434446200595 N12357TK
Euskadi / 60cm 08434446201134 N12360TK
Glitter Anthracite/Blue Carbon View (Gloss) / 47cm 08434446199936 N12347BR
Glitter Anthracite/Blue Carbon View (Gloss) / 49cm 08434446199998 N12349BR
Glitter Anthracite/Blue Carbon View (Gloss) / 51cm 08434446200052 N12351BR
Glitter Anthracite/Blue Carbon View (Gloss) / 53cm 08434446200113 N12353BR
Glitter Anthracite/Blue Carbon View (Gloss) / 55cm 08434446200175 N12355BR
Glitter Anthracite/Blue Carbon View (Gloss) / 57cm 08434446200236 N12357BR
Glitter Anthracite/Blue Carbon View (Gloss) / 60cm 08434446200939 N12360BR
Red Wine (Gloss)/Carbon Raw (Matt) / 47cm 08434446199943 N12347BS
Red Wine (Gloss)/Carbon Raw (Matt) / 49cm 08434446200007 N12349BS
Red Wine (Gloss)/Carbon Raw (Matt) / 51cm 08434446200069 N12351BS
Red Wine (Gloss)/Carbon Raw (Matt) / 53cm 08434446200120 N12353BS
Red Wine (Gloss)/Carbon Raw (Matt) / 55cm 08434446200182 N12355BS
Red Wine (Gloss)/Carbon Raw (Matt) / 57cm 08434446200243 N12357BS
Red Wine (Gloss)/Carbon Raw (Matt) / 60cm 08434446201103 N12360BS
White Chic/Black (Gloss) / 47cm 08434446199950 N12347BZ
White Chic/Black (Gloss) / 49cm 08434446200014 N12349BZ
White Chic/Black (Gloss) / 51cm 08434446200076 N12351BZ
White Chic/Black (Gloss) / 53cm 08434446200137 N12353BZ
White Chic/Black (Gloss) / 55cm 08434446200199 N12355BZ
White Chic/Black (Gloss) / 57cm 08434446200250 N12357BZ
White Chic/Black (Gloss) / 60cm 08434446201110 N12360BZ
WNT / 47cm 08434446199981 N12347TY
WNT / 49cm 08434446200045 N12349TY
WNT / 51cm 08434446200106 N12351TY
WNT / 53cm 08434446200168 N12353TY
WNT / 55cm 08434446200229 N12355TY
WNT / 57cm 08434446200762 N12357TY
WNT / 60cm 08434446201141 N12360TY

Reviews
