Orbea Terra H30 1X

Orbea Terra H30 1X
  • Color: Mango Gloss
  • Color: Metallic Copper Matt
  • Color: Metallic Night Black (Matt-Gloss)
$2,699.00
Color:
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

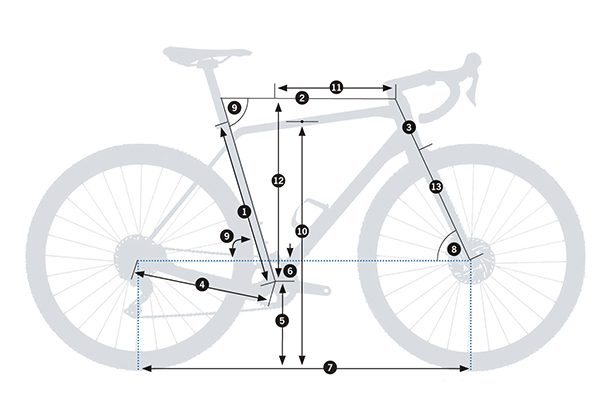

Geometry Chart:
X-SmallSmallMediumLargeX-LargeXX-Large
11 - SEAT TUBE (C-T) 425 458 491 524 557 590
22 - TOP TUBE (EFF) 526 539 558 570 590 603
33 - HEAD TUBE 110 131 152 178 199 220
44 - CHAINSTAY 430 430 430 430 430 430
55 - BB HEIGHT (30-622) 263 263 263 265 265 265
65 - BB HEIGHT (40-622) 278 278 278 280 280 280
76 - BB DROP 78 78 78 76 76 76
87 - WHEELBASE 1020 1030 1039 1054 1063 1072
98 - HEAD ANGLE 70º 70.5º 71º 71º 71.5º 72º
109 - SEAT ANGLE 74º 74º 73.5º 73.5º 73º 73º
1110 - STANDOVER (30-622) 704 731 759 788 815 838
1210 - STANDOVER (40-622) 718 746 773 803 830 853
1311 - REACH 375 382 389 395 402 409
1412 - STACK 526 548 570 592 614 636
1513 - FORK LENGTH 390 390 390 390 390 390
16TRAIL (30-622) 66 62 59 59 56 53
17TRAIL (40-622) 71 68 64 64 61 58
Sizes:
Frame SizeRider Height (in)
X-Small 61.1"-65.4"
Small 65.7"-67.7"
Medium 68.1"-70.5"
Large 70.9"-72.8"
X-Large 73.2"-75.2"
XX-Large 75.6"-81.5"

Specs

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 21c, 28h
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Tires Vittoria Terreno Dry Gravel 700x38c
Crankset Shimano GRX RX600 40t
Shifters Shimano ST-RX600
Rear Derailleur Shimano RX812 GS
Brakes Shimano RX400 Hydraulic disc
Handlebars OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Stem OC Road Performance RP21, -6º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Carbon, 27.2mm, Setback 20
Saddle Prologo Akero AGX STN size 155mm
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Mango Gloss / X-Small 08434446226861 N14102DA
Mango Gloss / Small 08434446226892 N14103DA
Mango Gloss / Medium 08434446226922 N14105DA
Mango Gloss / Large 08434446226953 N14107DA
Mango Gloss / X-Large 08434446226984 N14109DA
Mango Gloss / XX-Large 08434446227011 N14110DA
Metallic Copper Matt / X-Small 08434446226847 N14102D8
Metallic Copper Matt / Small 08434446226878 N14103D8
Metallic Copper Matt / Medium 08434446226908 N14105D8
Metallic Copper Matt / Large 08434446226939 N14107D8
Metallic Copper Matt / X-Large 08434446226960 N14109D8
Metallic Copper Matt / XX-Large 08434446226991 N14110D8
Metallic Night Black (Matt-Gloss) / X-Small 08434446226854 N14102D9
Metallic Night Black (Matt-Gloss) / Small 08434446226885 N14103D9
Metallic Night Black (Matt-Gloss) / Medium 08434446226915 N14105D9
Metallic Night Black (Matt-Gloss) / Large 08434446226946 N14107D9
Metallic Night Black (Matt-Gloss) / X-Large 08434446226977 N14109D9
Metallic Night Black (Matt-Gloss) / XX-Large 08434446227004 N14110D9
